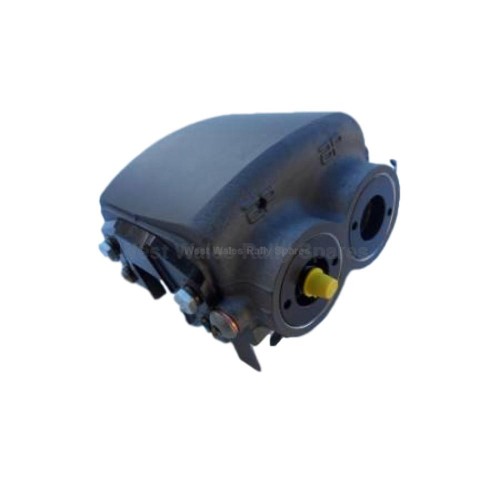

The closed back machined and inserted lug this has to be the ultimate 4 pot tarmac caliper for Historic FIA legal MK1 and MK2 GP4 rally or race cars. The combination of this caliper and the "Monte" 260mm x 25.4mm brake disc is a tried and tested set up, the results say it all.


TECHNICAL SPECIFICATIONS
Piston Area cm³53.8
Disc Diameter - mm- Max = 302.0
- Min = 260.0
Disc Thickness - mm28.0
Weight (no pads) - Kg2.7
Hydraulic Threads3/8"x24UNF
Mounting TypeBlank Lug
Mounting Centres - mm76.2 / 94.0
Mounting Offset - mm33.3 / 42.4
‘PL’ Dimension - mm66.3 / 85.6
Bleed Screw Tightening Torque17Nm
SPARE PARTS
PistonsCP2270-92
Seal Repair KitCP4518-KK
Anti-Knockback Spring KitCP6518-4LBLL
Bleed ScrewCP3720-182
